NEX-PLUG-50/Twin

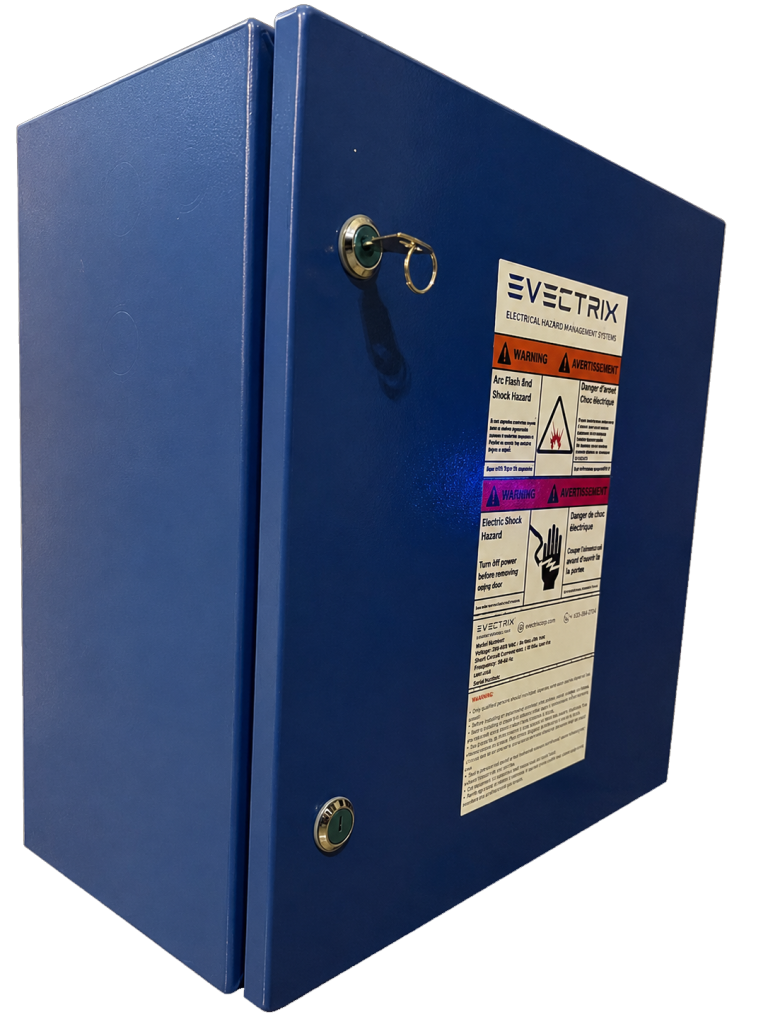

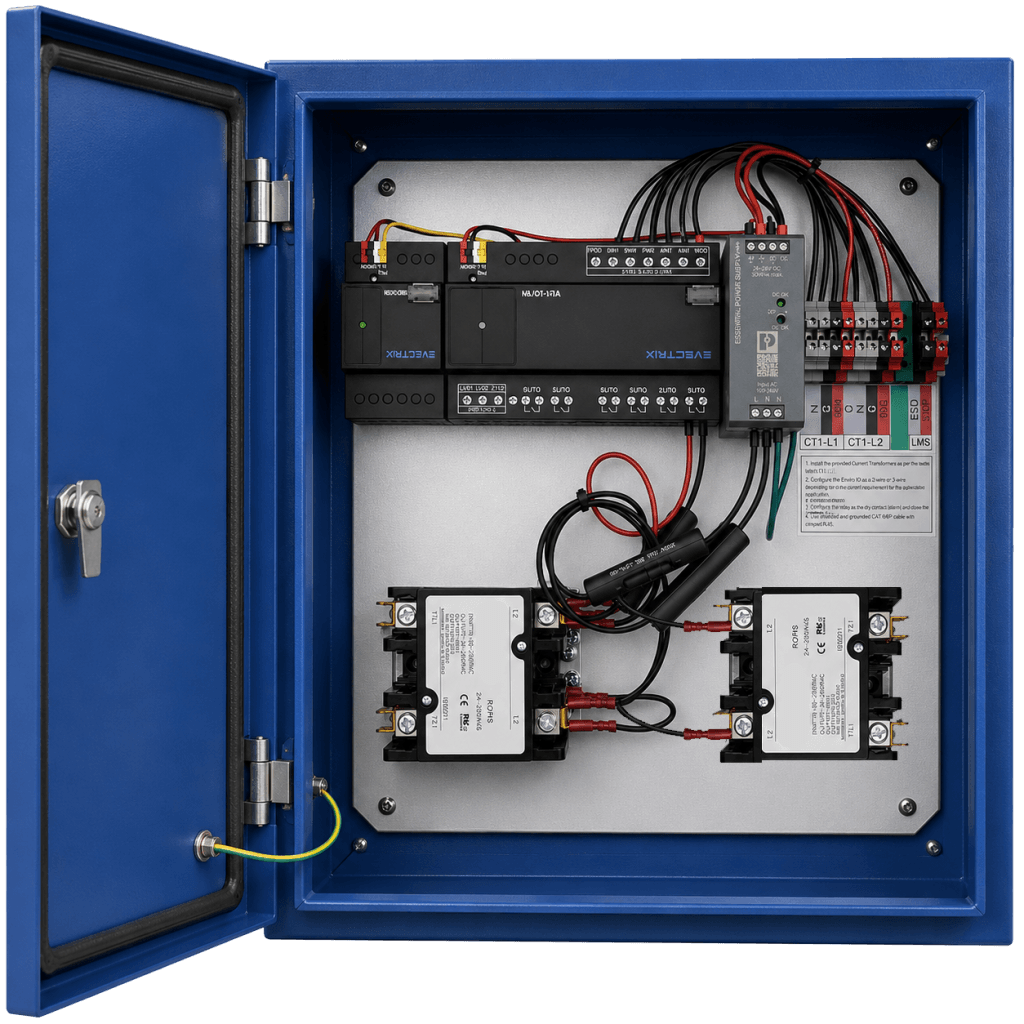

Nex-Plug-50/TWIN is a smart panel with an Electric Vehicle Energy Management System (EVEMS) including two NEMA 14-50 plugs to connect one or two plugged-in EV charger.
This smart panel featuring 2 embedded Nema14-50 plug will reduce installation cost and enables seamless connection of an electric vehicle charger to the electrical panel, even in cases where the panel lacks the necessary capacity for a direct connection.
The Nex-Plug-50/TWIN smart panel can be utilized for single house as a STANDALONE MODE and for townhouses as a NETWORKABLE MODE including a real-time clock.

DOWNLOAD SPEC SHEET
  • INPUT: 208/240 VAC
    CONTROL VOLTAGE: 24 VDC 2A
    DIMESNION : 16”x16”x8”
    WORKING TEMPERATURE：-20°C to  +40°C
    STORAGE TEMPERATURE： -20°C TO  +40°C
    OUTPUT: 2xNema 14-50  208/240 VAC
    ENCLOSURE TYPE: NEMA 3R
    WEIGHT: 31 lb

How It Works:

  • Continuously monitors the real-time total power consumption of the home's electrical panel.
  • Detects instances when the total power consumption surpasses 80% of the main circuit breaker's capacity and initiates a temporary de-energization of the EV charger.
  • Automatically restores power to the EV charger when the total power consumption of the electrical panel remains below 80% of its capacity for a duration exceeding pre-programmed time.
  • Requires the availability of a double pole breaker slot in the panel.(Installation Method 1 only)

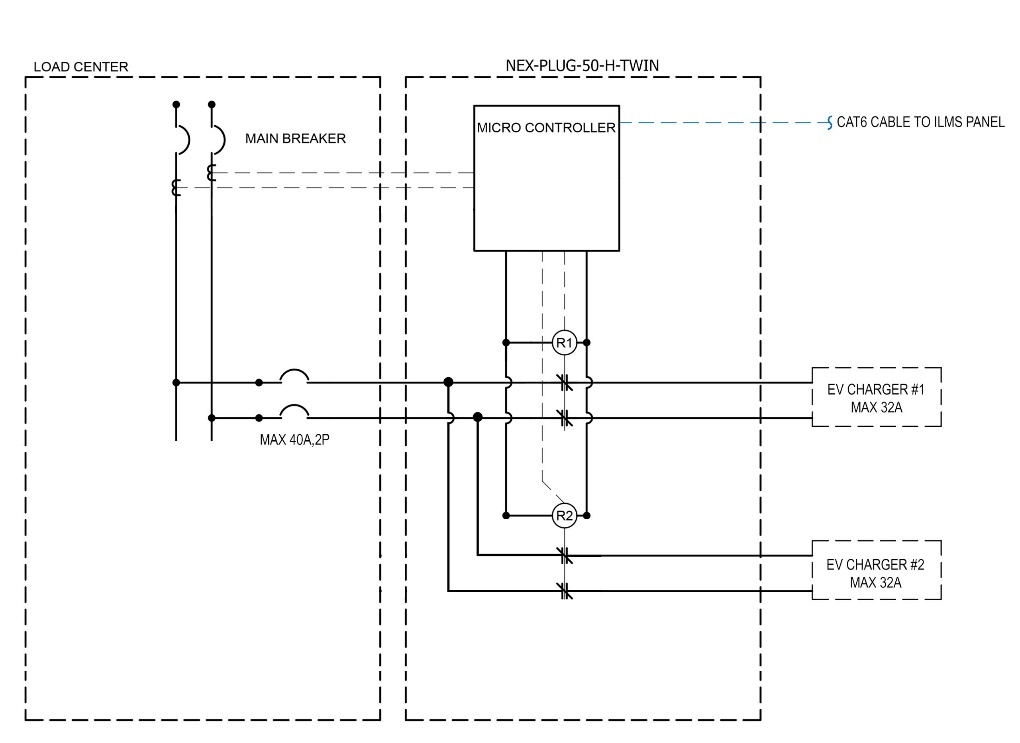

EVECTRIX NEX-PLUG-50 Installation Method A
