NEX-1/4-40A

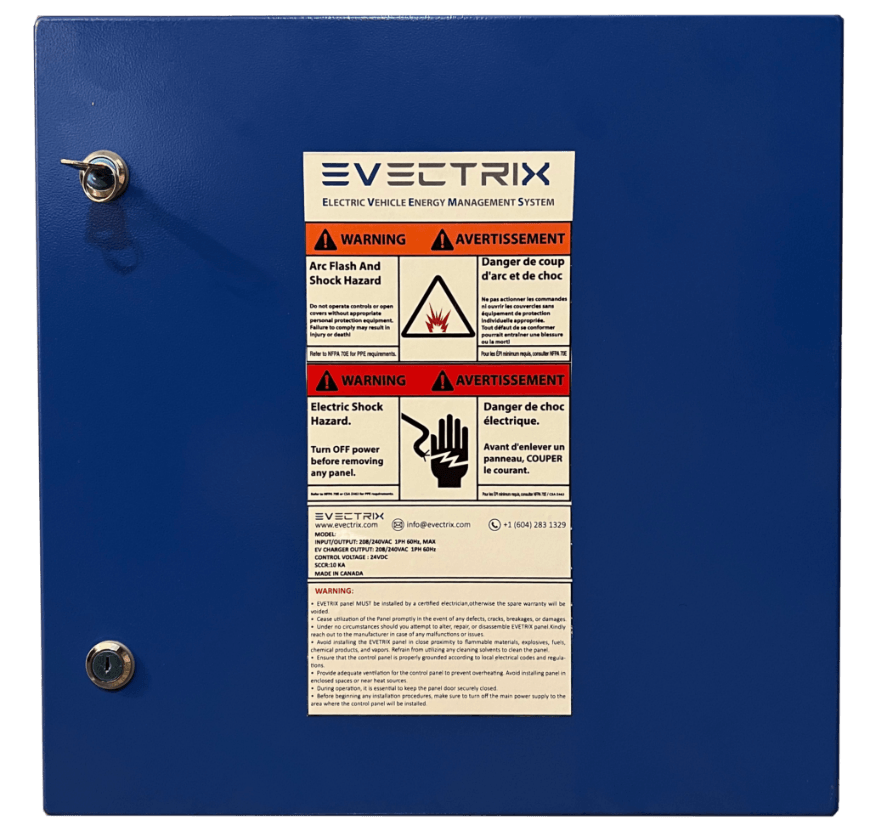

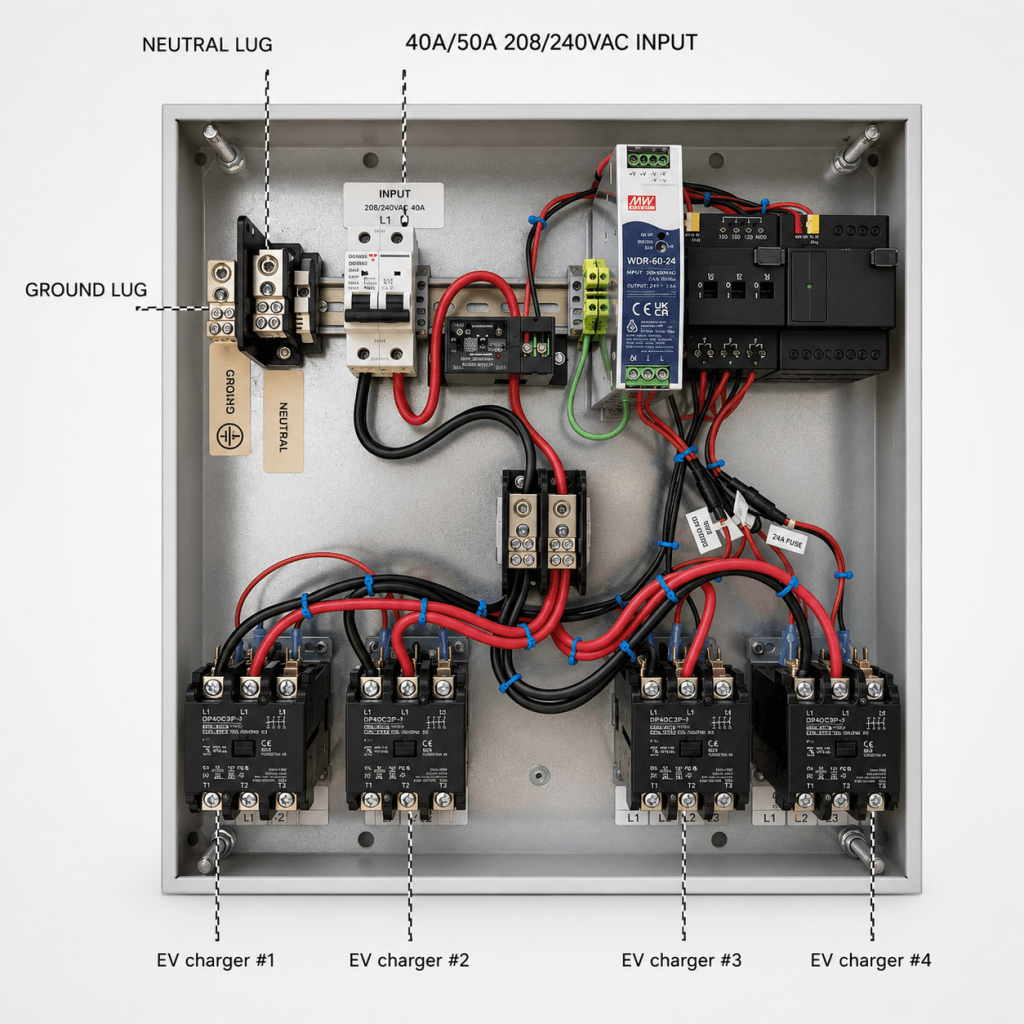

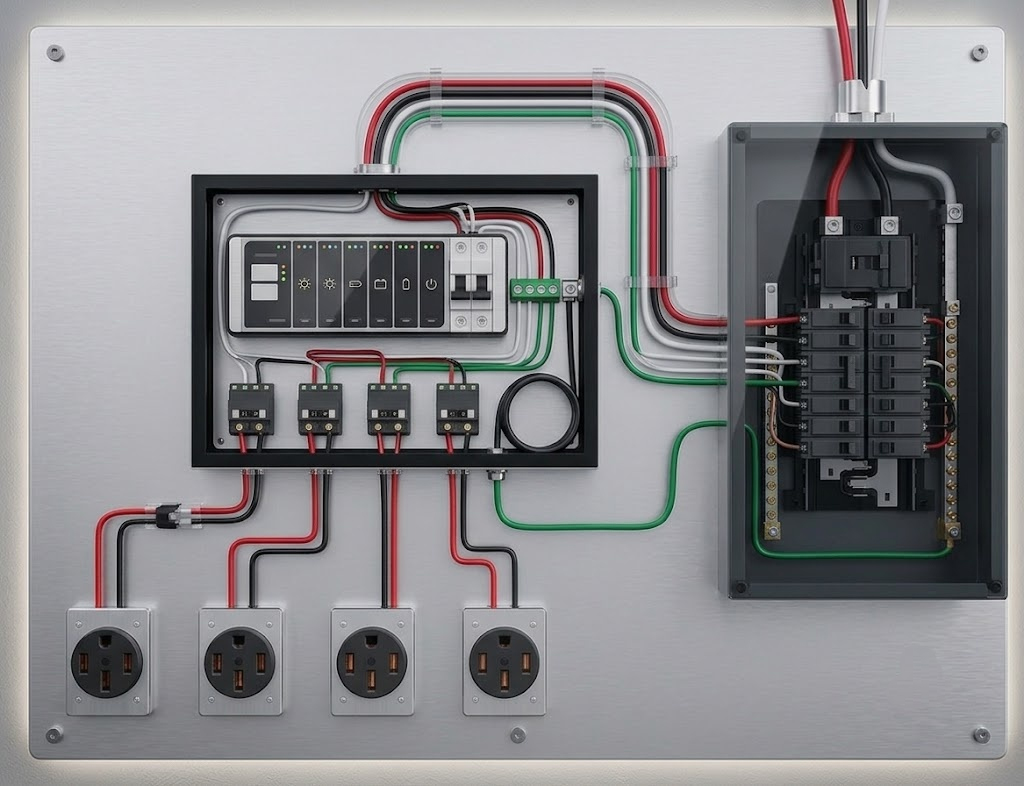

Electric Vehicle Energy Management System(EVEMS) Smart Panel, capable of handling up to 4 EV Chargers at 32 A each, can be operated in either a standalone configuration or a network-enabled mode.
-
INPUT: 1x40A 208/240 VAC
-
CONTROL VOLTAGE: 24 VDC 2A
-
DIMESNION : 19”x19”x6”
-
WORKING TEMPERATURE：-20°C to +40°C
-
STORAGE TEMPERATURE： -20°C TO +40°C
-
OUTPUT: 4x40A 208/240 VAC
-
ENCLOSURE TYPE: NEMA 3R
-
WEIGHT: 40 lb
-
WORKING RELATIVE HUMIDITY： ≤90%
-
STORAGE RELATIVE HUMIDITY： ≤93%
